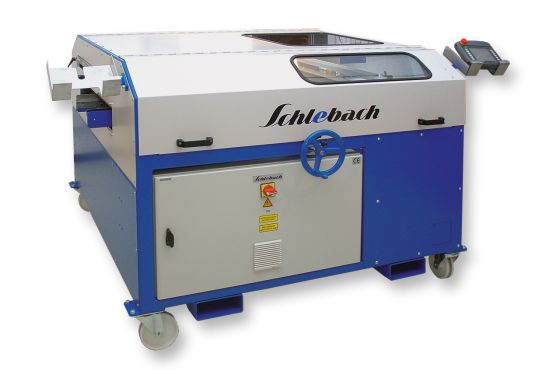

Profiling machine SPM-KS / PMC-KS

Special profiling machine of the robust SPM / PMC series for profiling conical shapes directly from the coil with double standing seam with a height of 25 mm or 32 mm, either in standard shape (SPM-KS) or with clip relief (PMC-KS).

  • Robust and suitable for all double standing seam profile applications
  • User-friendly special control with touch panel
  • Calculation of the position for angled cutting and profiling
  • Adjustable for conical panels
  • Profiling of conical cutted panels in one run
  • Motorized roller shear for cross-cutting
  • Infeed width max. 870 mm, infinitely variable
  • Maximum angle ± 3°
  • Shortest panel length 500 mm (depending on the material)
  • Available for standard double standing seam (SPM-KS) or with clip relief (PMC-KS)
  • Profile rollers made from high-quality special steel with high level of corrosion and wear protection
  • Resilient mounts of the upper profile rollers ensure impression-free and low-wear production of the panels

Standard double standing seam 25

Standard double standing seam 32

Double standing seam 25 with clip relief

Double standing seam 32 with clip relief
