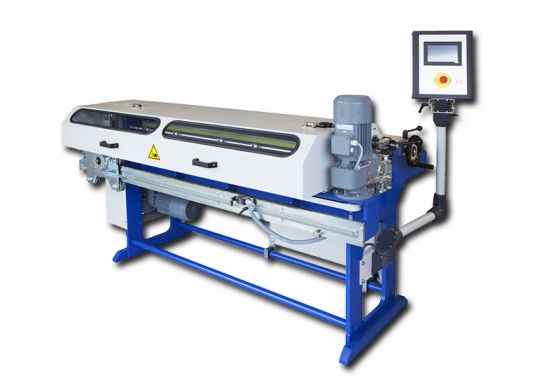

Slitting system SLMSS 1250

Slitting and cross-cutting unit for flexible, precise and burr-free cropping of wide strip material.

  • Compact slitting and cross-cutting system
  • Cross-cutting with compact roller shear
  • Run-in width steplessly adjustable from 200 - 1,250 mm
  • User-friendly PLC control with 7" touch-panel
  • Feed rate max. 22 m/min (adjustable via frequency converter)
  • Strip in-feed, easy on materials, with specially coated feed rolls
  • Rapid clamping mechanism for damage-free clamping of the blades
  • Blade shafts with 4 pairs of knives (deployable and regrindable from both sides)
  • Optional enhancement up to 10 pairs of knives at reduced cutting capacity
  • Adjustable support for lower blade shaft
  • Blade position control using scale, with millimetre precision
  • Blade shaft with 100 mm diameter
  • Raising of the upper shaft for waste optimization and for cross-cutting operating mode
  • Maintenance-friendly, simple and more efficient blade changing

Image shows decoiler AH1250K5

PLC control with touch panel
