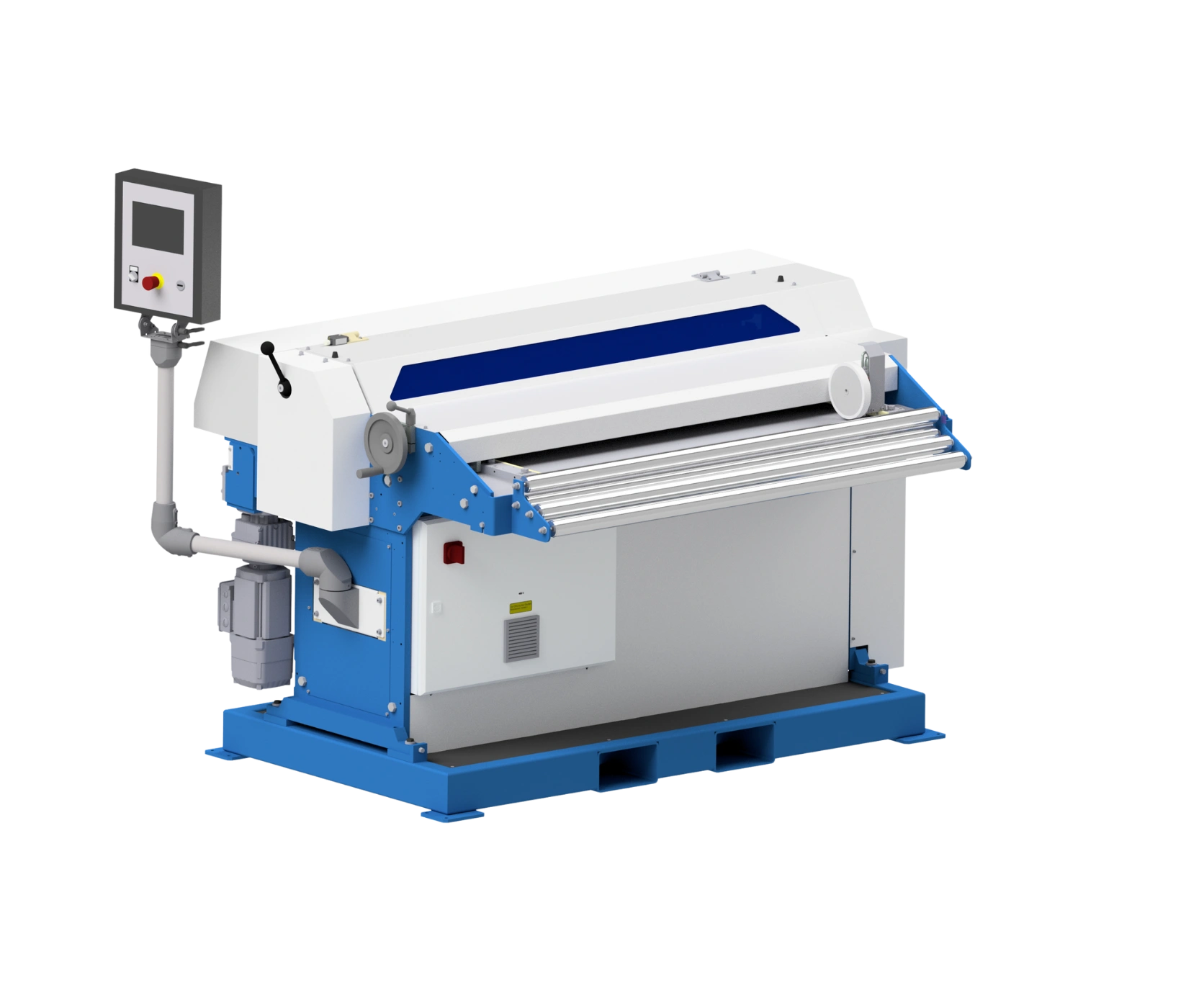

Splitting System EVO

Slitting and cross-cutting line for flexible, precise, and burr-free cutting of wide strips.

Features

Compact slitting and cross-cutting line
Cross-cutting with compact roll shear
Inlet width continuously adjustable from 200 to 1,250 mm
User-friendly PLC control with 7″ touch panel
Feed speed 22 m/min (adjustable via frequency converter)
Strip feed, gentle on material with specially coated feed rollers
Clamp fix holder for damage-free clamping of the shafts
Knife shafts with 4 pairs of knives (can be used on both sides and reground)
Optional extension to 10 pairs of knives with reduced cutting performance
Adjustable support for lower knife shaft
Knife positioning via scale, accurate to the millimeter
Knife shaft with 100 mm diameter
Lifting of the upper shaft for optimizing waste and for cross-cutting mode
Maintenance-friendly, simple, and efficient knife change
Infeed height 950 mm
(including additional frame base with forklift pockets)
Split knife with clamping ring can be moved manually
Knife can be positioned manually via digital display

Connection Voltage	400 V / 50 Hz / 3 Ph. Optional: 460 V / 50 Hz / 3 Ph. 230 V / 50 Hz / 3 Ph.
Drive Power Cross Separation	0.75 kW
Drive Power Main Drive	1.10 kW (Optional 1.50 kW)
Belt Entry Width	200 – 1,250 mm
Working Speed	max. 22 m/min, infinitely variable Optional max. 35 m/min
Length Tolerance	± 0.5 mm (1,000 mm)
Number of Knife Pairs	Standard: 4 Optional up to 10 (depending on material)
Processable Materials Steel sheet (400 N/mm²) Stainless steel (700 N/mm²) Copper / Zinc Aluminium	max. 1.25 mm (4 knife pairs) max. 1.0 mm (4 knife pairs) max. 1.25 mm (4 knife pairs) max. 1.5 mm (4 knife pairs)
Dimensions (L x W x H)	1,350 mm x 2,100 mm x 1,220 mm
Weight	approx. 1,025 kg
