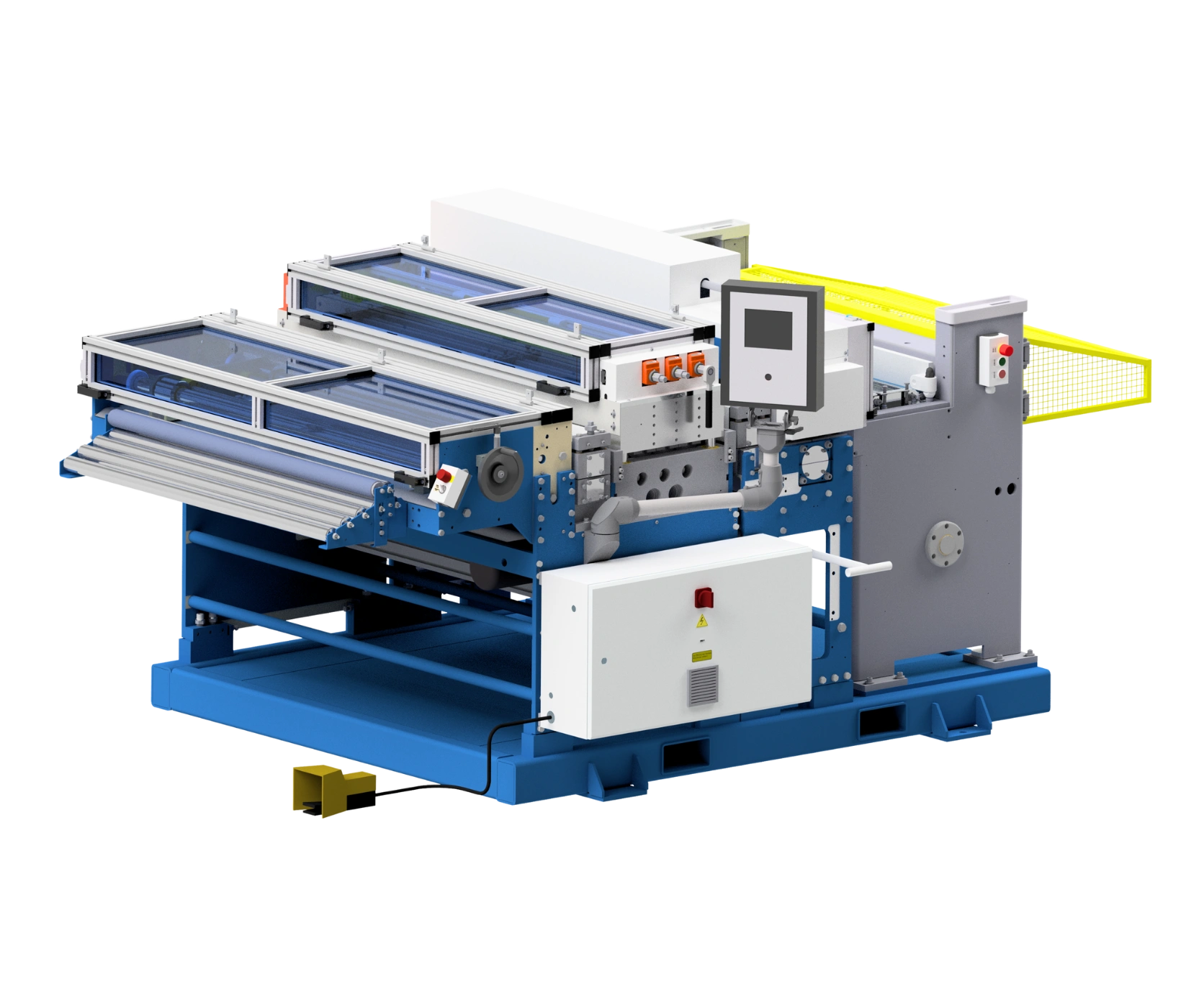

Slitting system SLMST MASTERCUT 1250 / 1500

Slitting and cross cutting unit industrial for flexible, accurate and burr-free cutting of wide strip material.

Features

Productive slitting and cross-cutting system with guillotine shear and integrated straightener for wide strips 1,250 and 1,500 mm
Run-in width steplessly adjustable from 200 – 1,250 mm (1,500 mm)
Material thickness up to 2 mm (depending on material and number of cuts)
User-friendly PLC control with 7″ touch-panel
6 hard chrome-plated straightening rolls, lower 3 straightening rolls driven
Upper 3 straightening rolls for set-up mode and for stop during cutting can be lifted automatically
Support for upper and lower straightening rolls
Feed rate max. 28 m/min (adjustable via frequency converter)
Strip in-feed, easy on materials, with specially coated feed rolls
Rapid clamping mechanism for damage-free clamping of the blades
Blade shafts with 5 pairs of knifes (deployable and regrindable from both sides)
Optional enhancement up to 10 pairs of knives at reduced cutting capacity
Adjustable support for lower and upper blade shafts
Blade position control using scale, with millimetre precision
Blade shaft with 100 mm diameter
Autom. raising of the upper shaft for waste optimization and for cross-cutting operating mode
Uniform base frame for cross-cutting system and plate shears
Forklift pockets for safe transport

Video

Technical information

	SLMST MASTERCUT 1250	SLMST MASTERCUT 1500
Supply voltage	400 V / 50 Hz / 3 Ph.	400 V / 50 Hz / 3 Ph.
Drive power	3.0 kW	3.0 kW
Strip run-in width	200 – 1,250 mm	200 – 1,500 mm
Working speed	max. 22 m/min, adjustable	max. 22 m/min, adjustable
Length tolerance	± 0.5 mm (1,000 mm)	± 0.5 mm (1,000 mm)
Number of blade pairs	Default: 5 Optional up to 10 (depending on the material)	Default: 5 Optional up to 10 (depending on the material)
Processable materials Sheet steel (400 N/mm²) Stainless steel (700 N/mm²) Copper / Zinc Aluminium	max. 1.5 mm (5 blade pairs) max. 1.25 mm (4 blade pairs) max. 1.5 mm (5 blade pairs) max. 1.5 mm (5 blade pairs)	max. 1.5 mm (5 blade pairs) max. 1.25 mm (4 blade pairs) max. 2.0 mm (5 blade pairs) max. 2.0 mm (5 blade pairs)
Dimensions (L x W x H)	3,580 mm x 2,000 mm x 1,560 mm	3,580 mm x 2,300 mm x 1,560 mm
Weight	approx. 4,000 kg	approx. 4,800 kg

Accessories

Right operating side SLMST MASTERCUT 1250 / 1500

As an alternative, the machine may be controlled from the right operating side.

Additional paired blades

In addition to the standard set of 4 paired blades, the machine may be extended to a max. of 10 pairs of blades (depending on material).

Double guide roller to feed the material gently

A pair of guide rollers in front of the intake guides facilitate the infeed of material to the slitting machine. This prevents damage to the material (e.g., bending of the strip material in front of the machines intake area).

Protective foil coater SFB (not driven)

The protective film unwinder can unwind a self-adhesive protective film and apply to the top surface of the material.

Feed table (liftable)

Table for supporting unwieldy material. The stainless steel surface can be pneumatically lifted (working pressure 8 bar). It gets controlled using the central PLC unit of the slitting and cross-cutting system.

Run-out table

Table with stainless steel surface for laying down panels after cutting. The welded construction in combination with four heavy duty castors (2x with locking brakes) ensures high stability. For attachment purposes, mechanic swivelling hooks are used. Magnetic safety switches are installed to verify the position of the table.

Decoiler AH1250A1 (only Multicut 1250)

A decoiler for metal coils with a max. weight of 1,000 kg and a max. coil width of 1,250 mm. The decoiler consists of a welded frame and a continuously adjustable mandrel on ball bearings with centre adjustment. The clamping range of the mandrel ranges from a min. of 280 mm to a max. of 530 mm inner coil diameter (optionally up to 650 mm). The manual braking assembly prevents metal coil overtravel. The decoiler is mobile because the decoiler is equipped with four swivelling castors. Extendable supports may be used to clamp the decoiler on site.

Decoiler AH1250K5 (only Multicut 1250)

A decoiler for metal coils with a max. weight of 5,000 kg and a max. coil width of 1,250 mm. The decoiler consists of an exceptionally stable welded frame and a continuously adjustable mandrel on ball bearings with centre adjustment. The clamping range extends from a min. of 380 mm to a max. of 530 mm inner coil diameter. A standard braking assembly prevents metal coil overtravel.

Decoiler AH1500K5 (only Multicut 1500)

A decoiler for metal coils with a max. weight of 5,000 kg and a max. coil width of 1,500 mm. The decoiler consists of an exceptionally stable welded frame and a continuously adjustable mandrel on ball bearings with centre adjustment. The clamping range extends from a min. of 380 mm to a max. of 530 mm inner coil diameter. A standard braking assembly prevents metal coil overtravel.
