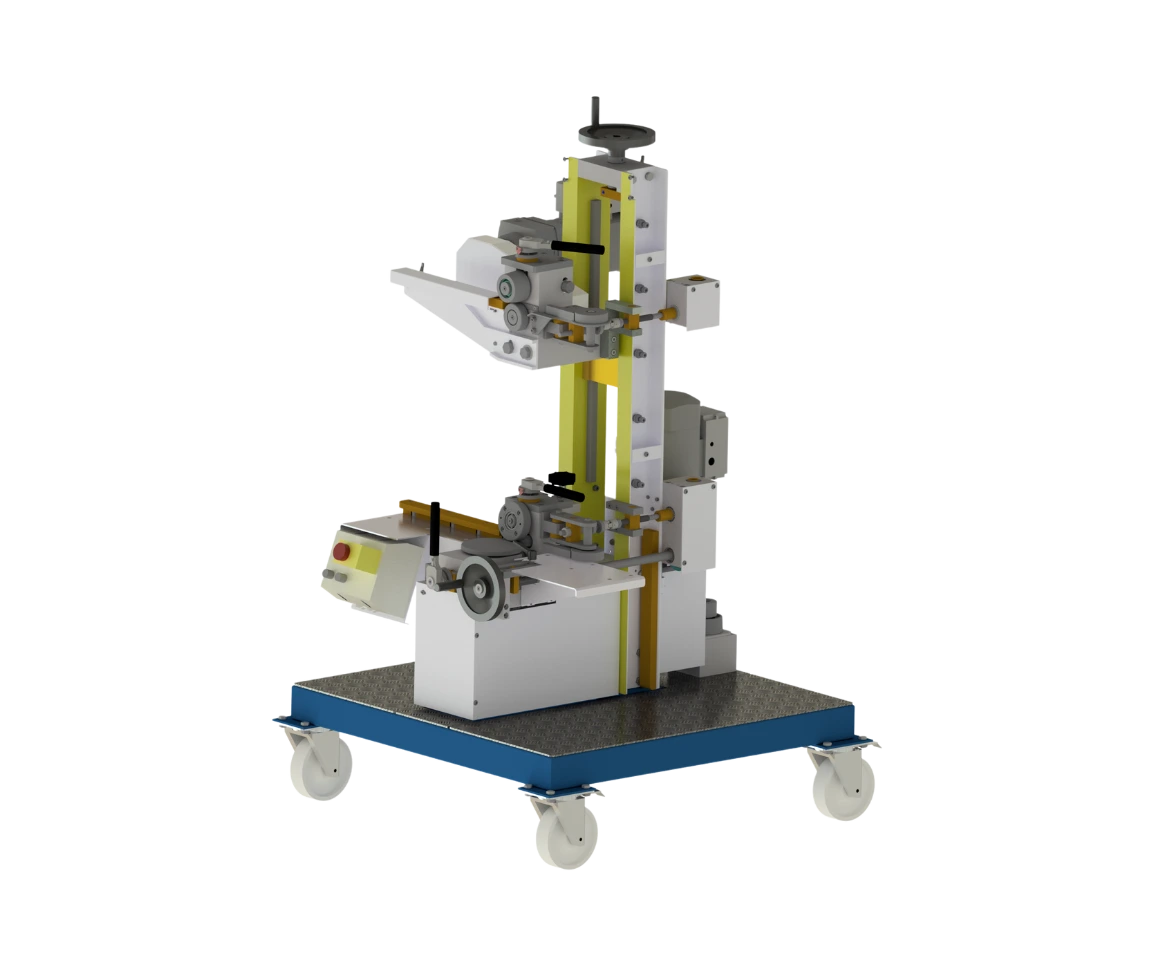

Robust round arch curving machine for convex bending of pre-profiled panels for use as dormers, round arches, domes or barrel-vault roofs with and without clip relief in the heights 25, 32 or 38 mm.
Features
- tailored to the double standing seam of the Schlebach profile shaping machines
- adjustable contact pressure, depending on the radii
- seamless production of changing radii in a panel
- seperately powered bending units for the female and male profile side
- panels with male profile on both sides in one work cycle
- conical and tapered panels or panels with female profile on both sides can be produced in multiple passes
- width adjustment using handwheel
- printed table shows necessary contact pressure
- working speed continuously variable from 0 to 12 m/min
- optionally also for profile heights 32 mm and 38 mm by exchanging bending rollers
- large number of possible shapes:
