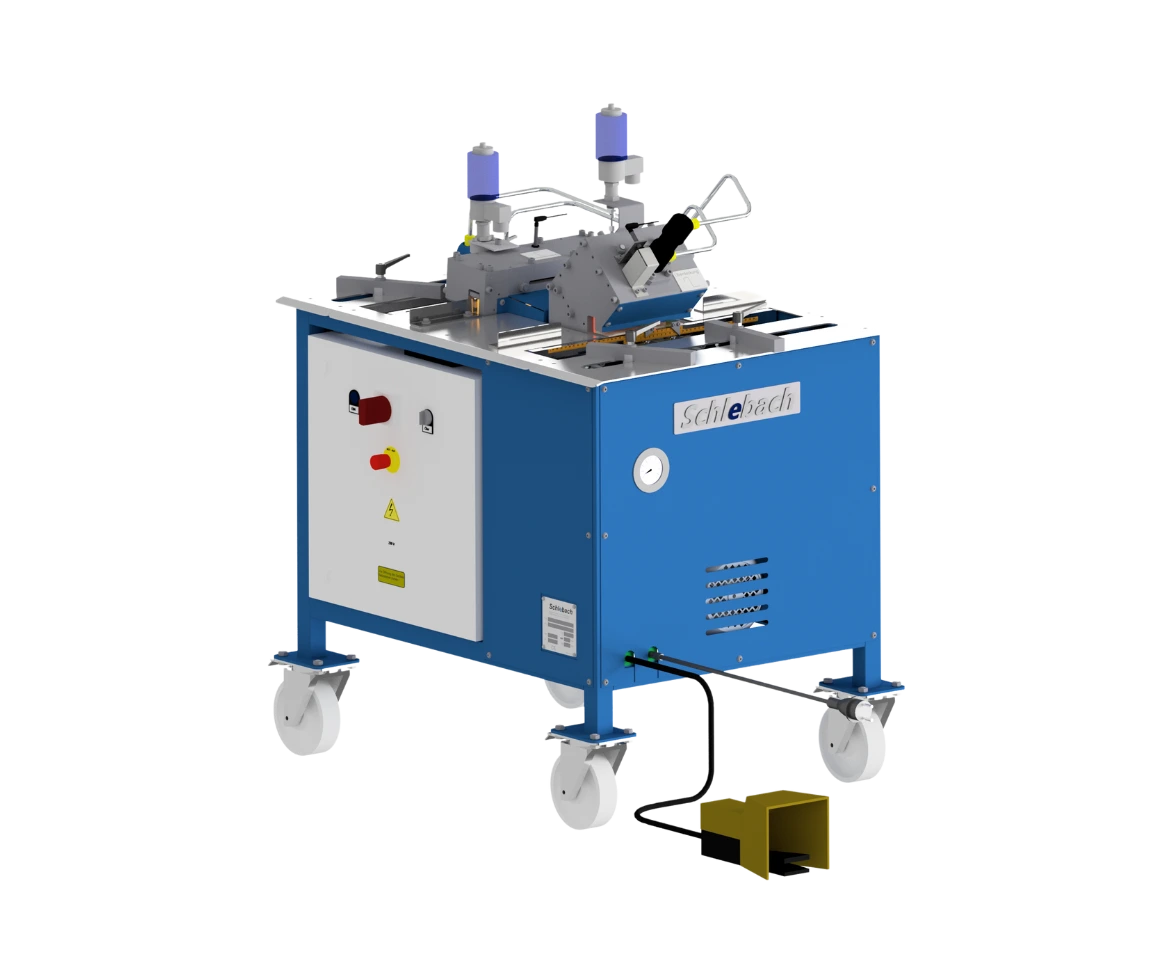

Electrohydraulic notching unit for quick and efficient mechanical assembly preparation of pre-profiled panels for roofs, dormers, facades and parapets.
![](https://www.schlebach.de/assets/images/a/kls90-blech-58c4567a.jpg)
Notched profile panels
Features
- Notching of a straight standing cutout in optionally 25, 32 and 38 mm profile height, standard or with clip relief
- Notching of parallel, tapered and trapezoidal profile panels
- Profiled sheets are cut out 90°, straight standing
- Double punching tools facilitate notchings for laying both from right to left as well as from left to right
- Panels can therefore be prepared for the eaves, building inflexion points or the upper parts
- Material thickness for non-ferrous metals up to 0.8 mm, stainless steel up to 0.5 mm and sheet steel up to 0.7 mm
![](https://www.schlebach.de/assets/images/b/blech-gerendert-4-da0bf8eb.jpg)
Video
More products and solutions
![](https://schlebach.de/wp-content/uploads/2022/10/schlebach-ausklinken-umkanten-UKST-1200x800.png)

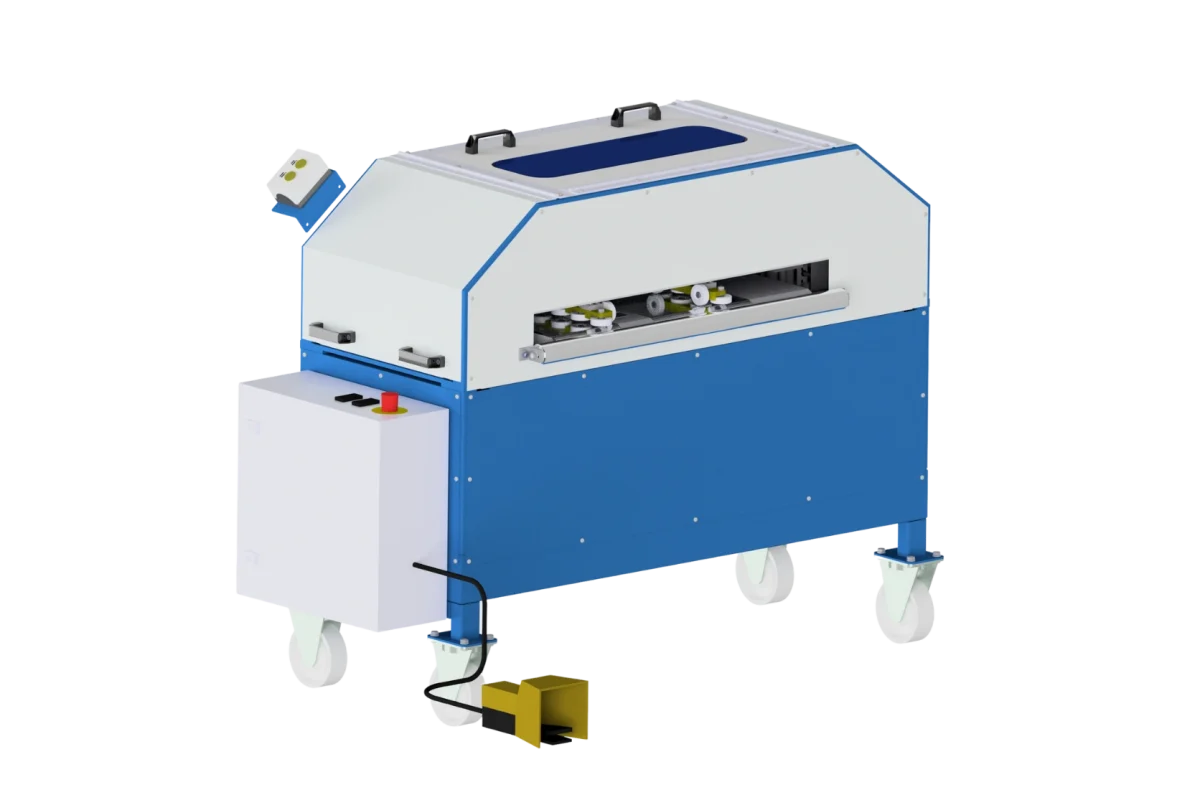

Bending unit UKST
Our UKST bending station - for flange mounting on profiling machines of the QUADRO series
![](https://schlebach.de/wp-content/uploads/2022/10/schlebach-ausklinken-umkanten-AK-QUAD-4-1200x800.png)

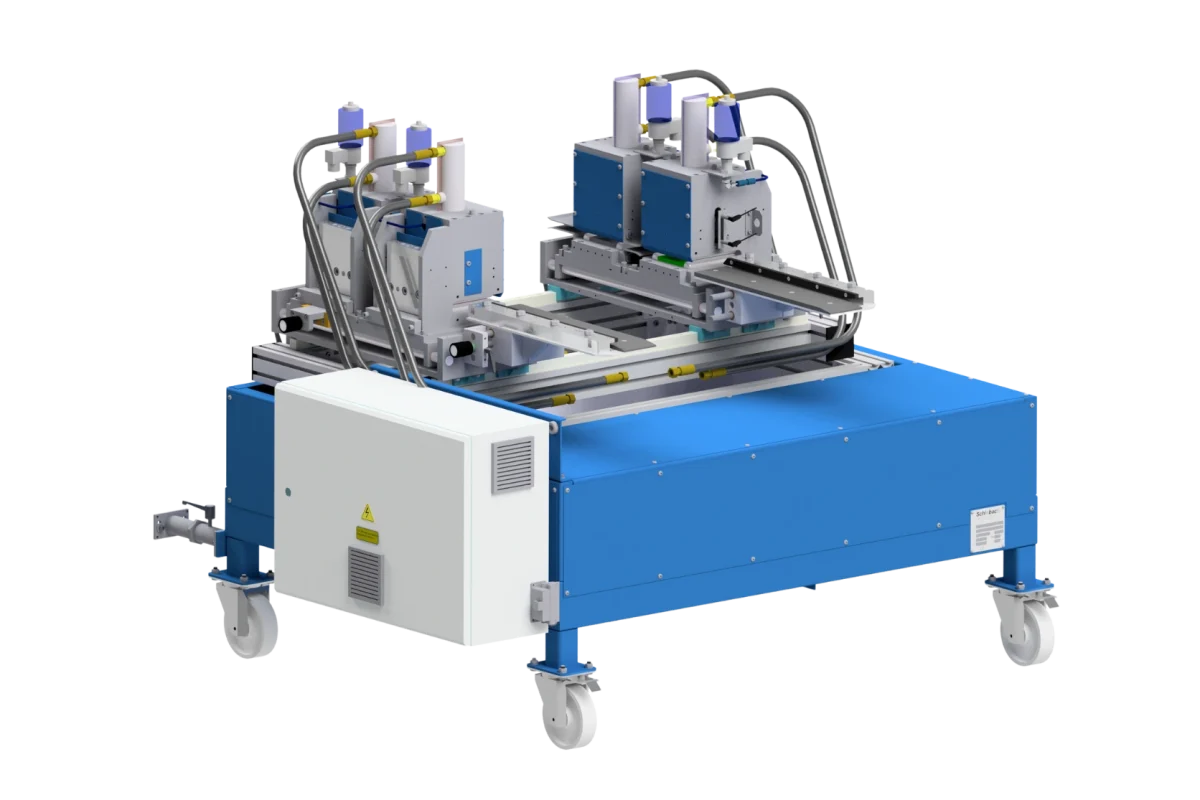

Notching unit AK-QUAD 4
Our AK-QUAD 4 notching unit - for upstream attachment to profiling machines of the QUADRO series
![](https://schlebach.de/wp-content/uploads/2022/10/schlebach-ausklinken-umkanten-AK-QUAD-1200x800.png)

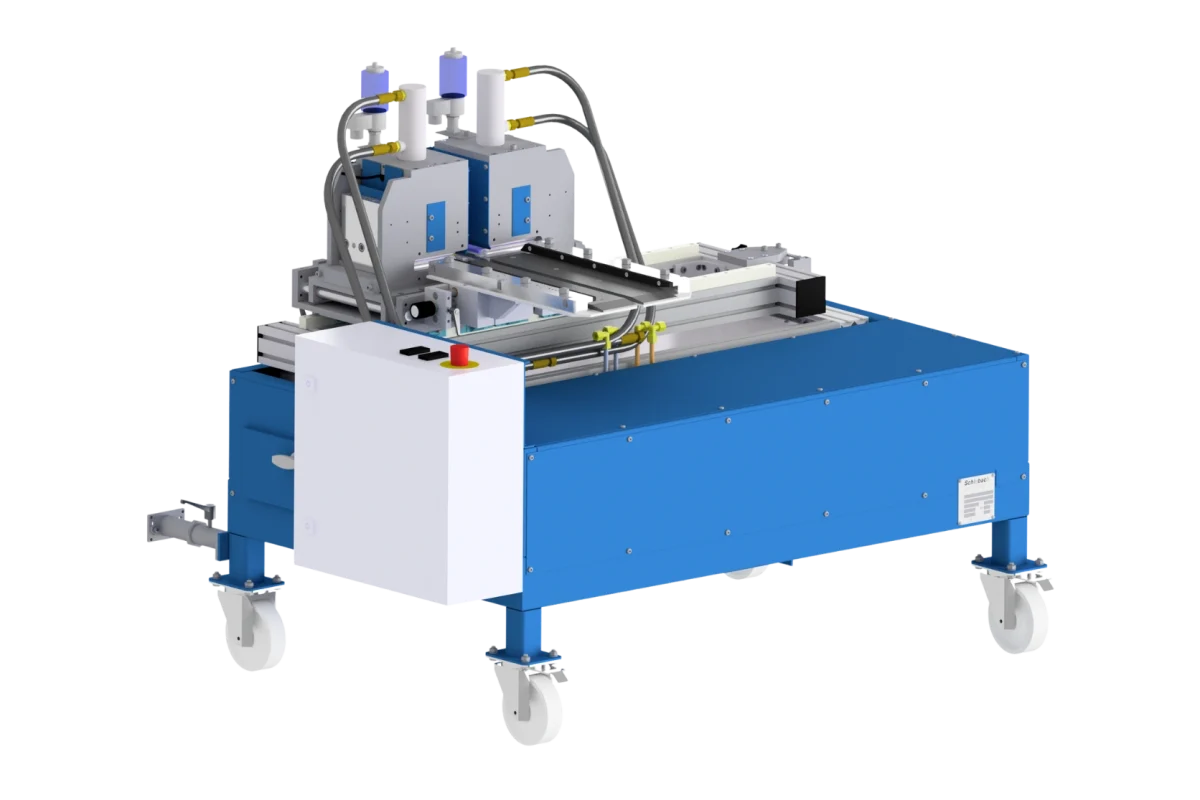

Notching unit AK-QUAD
AK-QUAD notching unit - For upstream attachment to profiling machines of the QUADRO series
![](https://schlebach.de/wp-content/uploads/2022/10/schlebach-ausklinken-umkanten-EHA-1200x800.png)

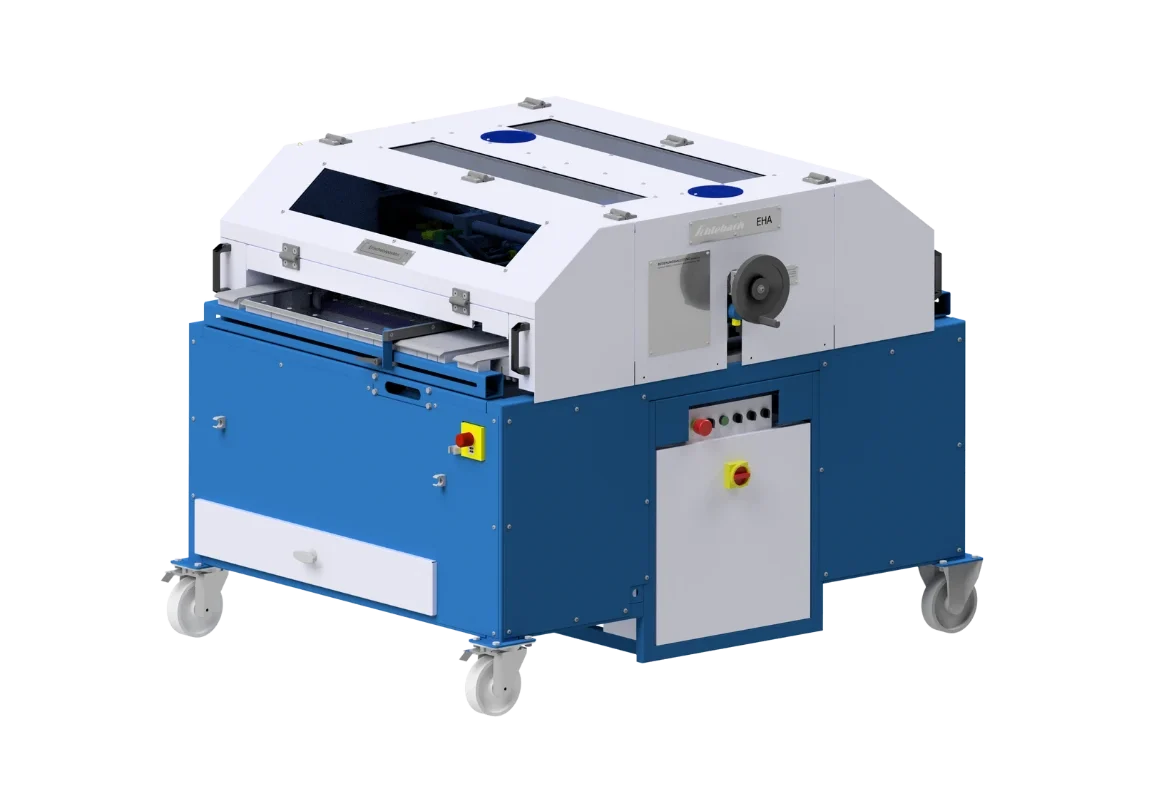

Notching unit EHA
Our EHA notching unit - For automated notching, driving and folding of pre-profiled panels with double lock standing seam 25, 32 and 38 mm
![](https://schlebach.de/wp-content/uploads/2022/10/schlebach-ausklinken-umkanten-KLS-1200x800.png)

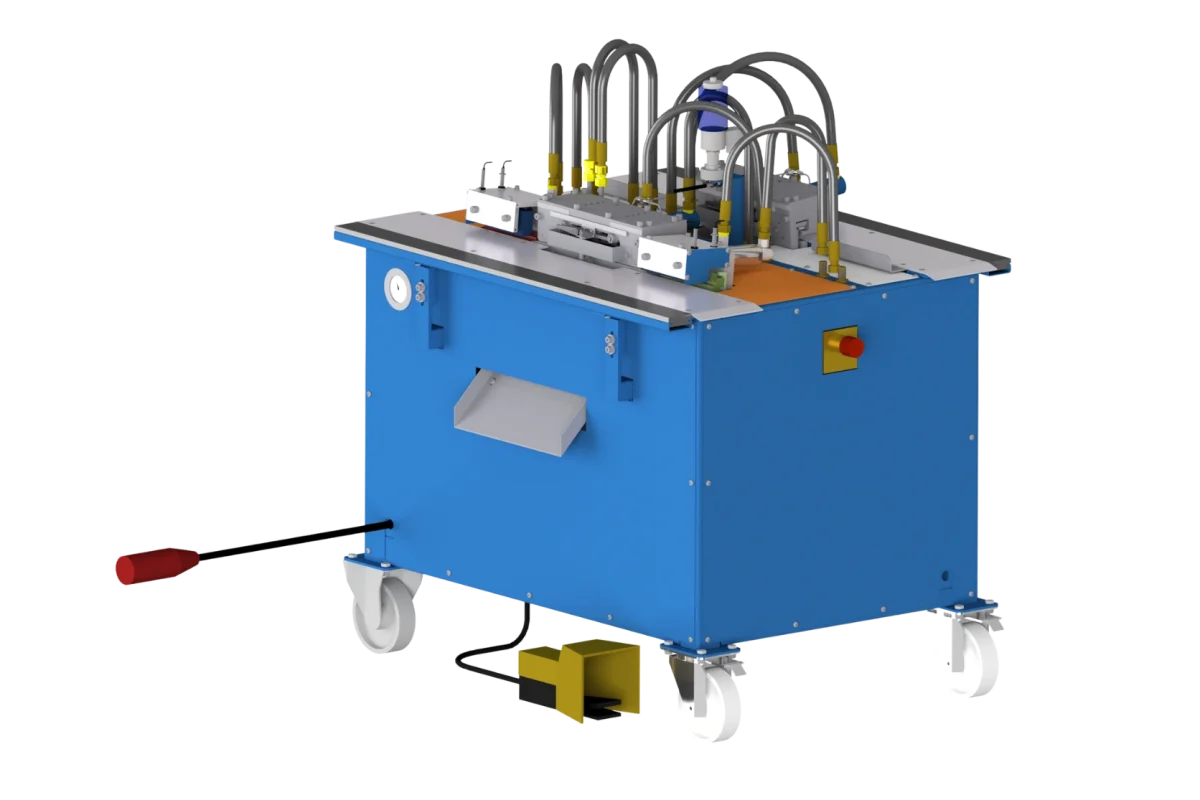

Nochting unit KLS
