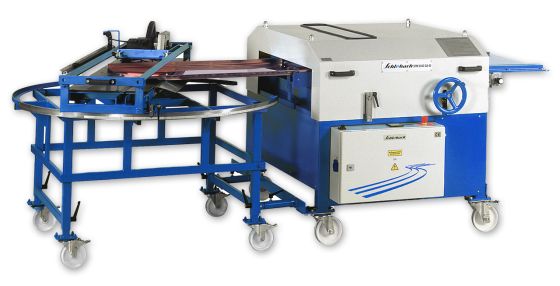

Profiling machine SPM-LM-QA60 / PMC-LM-QA60

Profiling machine of the robust SPM / PMC series with cross-cutting system QA60 after profile shaping for producing double standing seam with a height of 25 mm or 32 mm, either in standard shape (SPM-LM-QA60) or with clip relief (PMC-LM-QA60).

  • Robust and suitable for many double standing seam profile applications
  • Can be retrofitted with additional elements even at a later point in time thanks to the modular construction
  • User-friendly special control with touch panel
  • Cross-cutting system QA60 to perform manual cross-cuts with circular saw and special saw blade for all non-ferrous metals after profile shaping, pivotable by 60° on both sides
  • Optionally with roller shear RS for cross-cuts before profile shaping,
    or combination RS+LS for additional longitudinal cutting
  • With band infeed and clutch for infeed stop
  • Tapered, conical or fitting panels in 2 work cycles
  • Infeed width max. 870 mm, infinitely variable
    Alternative: Special
    model SPM-LM-QA60 1000 / PMC-LM-QA60 1000 with max. 1.080 mm
  • Shortest panel length 100 mm (depending on the material) thanks to cutting after profile shaping
  • Available for standard double standing seam (SPM-LM-QA60) or with clip relief (PMC-LM-QA60)
  • Roll sets for double standing seam 25 mm as well as 32 mm available
  • Adjustable infeed guides on ball-bearings for material guidance
  • Profile rollers made from high-quality special steel with high level of corrosion and wear protection
  • Resilient mounts of the upper profile rollers ensure impression-free and low-wear production of the panels

PLC control with touch panel

Standard double standing seam 25

Standard double standing seam 32

Double standing seam 25 with clip relief

Double standing seam 32 with clip relief
