Slitting system SLMST MULTICUT 1250 / 1500

Slitting and cross-cutting system in industrial design for flexible, precise and burr-free cropping.

  • Cross-cutting with guillotine shear for high productivity
  • Run-in width steplessly adjustable from 200 - 1,250 mm (1,500 mm)
  • Straightening system RIA3 with 3 hard chrome plated straightening rolls (optional)
  • SFB protective foil coater to attach a protective foil (optional)
  • User-friendly PLC control with 7" touch-panel
  • Feed rate max. 22 m/min (adjustable via frequency converter)
  • Strip in-feed, easy on materials, with specially coated feed rolls
  • Rapid clamping mechanism for damage-free clamping of the blades
  • Blade shafts with 4 pairs of knives (deployable and regrindable from both sides)
  • Optional enhancement up to 10 pairs of knives at reduced cutting capacity
  • Adjustable support for lower blade shafts
  • Blade position control using scale, with millimetre precision
  • Blade shaft with 100 mm diameter
  • Maintenance-friendly, simple and more efficient blade exchange
  • Autom. raising of the upper shaft for waste optimization and for cross-cutting operating mode
  • Electrical plate shear, cutting capacity up to 2.0 mm at 400 N/mm²
  • Uniform base frame for cross-cutting system and plate shears
  • Forklift pockets for safe transport

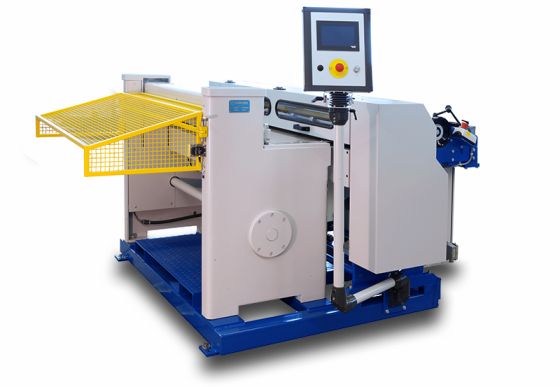

Image shows RIA3 straightening rolls and SFB protective foil unwinder option

PLC with touch panel
