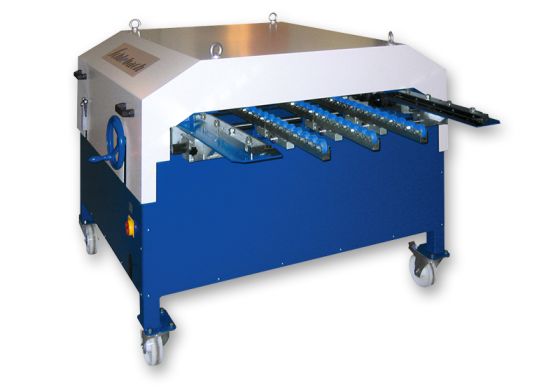

Profiling machine HPM

Robust and compact machine to produce hem seams on flues, for water folds, verges, etc. from sheet material

  • Considerable reduction of working hours to edge the sheet metal
  • Continuously adjustable infeed width from 130 - 870 mm (1.050 mm)
  • Fold-over length 6 - 15 mm
  • Closed and open fold-over possible
  • Z-shape with two runs
  • Hem seam rotated by 180° as a special variant
  • Shortest panel length 800 mm (depending on the material)
  • Working speed 18 m/min
  • Tapered, conical or fitting panels in 2 work cycles
  • Adjustable infeed guides on ball-beraings for guiding the material
  • Profile rollers made from high-quality special steel with high level of corrosion and wear protection
  • Resilient mounts of the upper profile rollers ensure impression-free and low-wear production of the panels

Possible profile shapes

Profile dimensions
